Datos del producto:
Pago y Envío Términos:
|
| Material: | High Wear-Resistant Stainless Steel | Size: | As demand |
|---|---|---|---|
| Pattern: | As demand | Function: | Used in the refiner |
| Application: | Pulp making | Type: | Pulping Equipment |
| Condition: | New | Product name: | Refiner Plate |
| Alta luz: | Stainless Steel Conical Refiner Plates,Conical Refiner Rotor Stator,Conical Refiner paper machine plate |
||

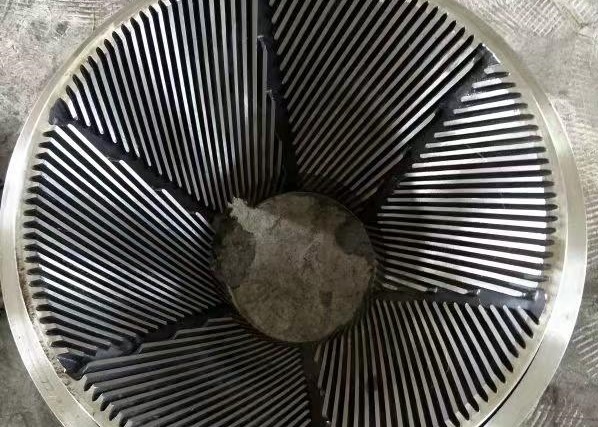

High Wear-Resistant Stainless Steel Conical Refiner Plates Rotor Stator Used In Different Kinds Of Pulp Making
| Model | Plate diameter(mm) | Capacity(t/d) | conical degree | Motor(Kw) |
| ZM19 | Φ460 | 30-150 | 40° | 200-315 |
| ZM24 | Φ600 | 50-250 | 40° | 355-500 |
| ZM30 | Φ750 | 80-400 | 40° | 560-900 |
It can homogenize (split, broom) and improve beating degree of all kinds of pulp (including wood pulp, cotton pulp and pulp), so that it has the characteristics required by paper machine production and can produce paper and paperboard meeting the quality requirements. The utility model can be used by a single set or by multiple sets in series and parallel.
The machine is mainly composed of base, front cover, housing, moving gear cutter head, stationary gear cutter head, cutter feed mechanism, rotor and operation box. The front cover, housing, moving gear cutter head and stationary cutter head constitute the slurry grinding chamber. The slurry is pumped into the grinding chamber from the slurry inlet of the front cover. Before entering the rotary cutter head and the stationary cutter head for slurry grinding, the unclean impurities are pulled down to the desander box under the action of gravity. The rotating cutter head rotates under the drive of the motor to make the slurry produce centrifugal force and enter the grinding area composed of the rotating cutter head and the stationary cutter head. Under the action of the cutter teeth, the slurry fiber is cut off, divided, broomed, twisted and crushed to produce qualified slurry. Compared with the double disc mill, its remarkable features are as follows:
A. It is easier to maintain and replace the grinding disc;
B Low power consumption during no-load operation;
C The fiber quality is high due to long refining area and long retention time of pulp in the grinding area;
D Good cone contact and high efficiency;
E. A desander box is provided to clean the slurry and reduce improper damage of the cutter head.
